HW3

Ray Tracer Part 2

For the second part of the ray tracer I implemented triangles with and without specified normals!

At first I was running into issues displaying triangles with negative vertices (ex. (0,0,-1) would upset the triangle-intersection algorithm I was using). I fooled aorund with some test cases using simply one or two triangles, because these test cases were easier and significantly faster to run than more complicated scene files.

Progression of my work on the dragon:

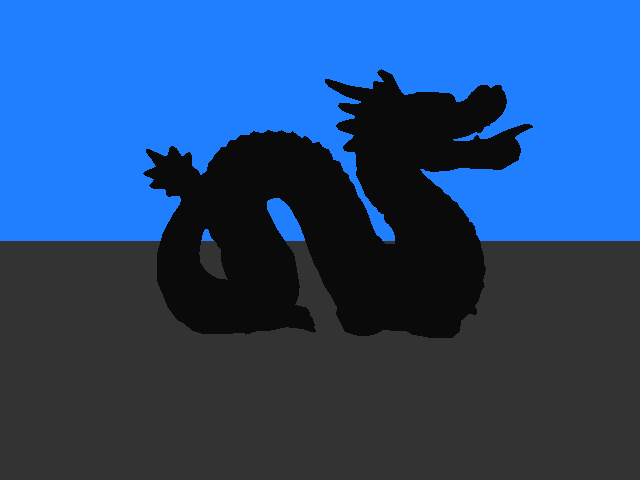

First try with triangle intersction
Triangle intserction works, but lighting doesn't

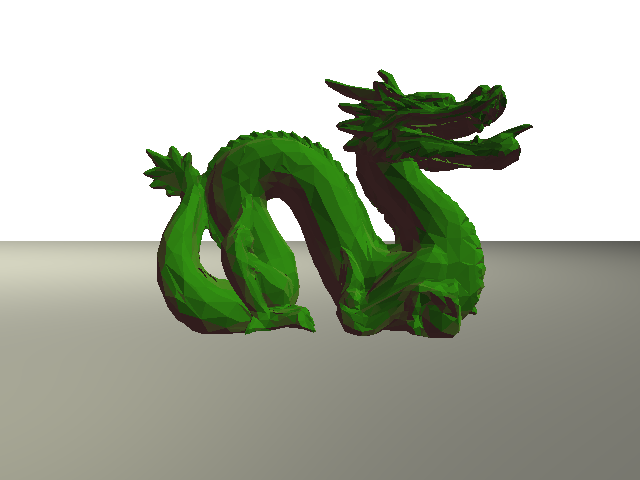

Everything is working for the side view and fooled around with material properties

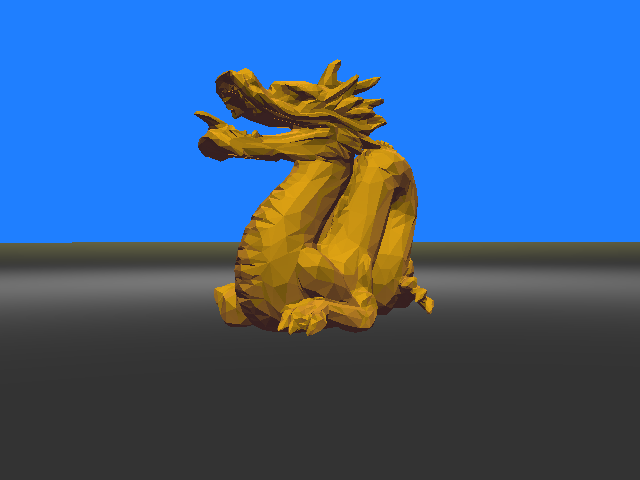

Front view also works!

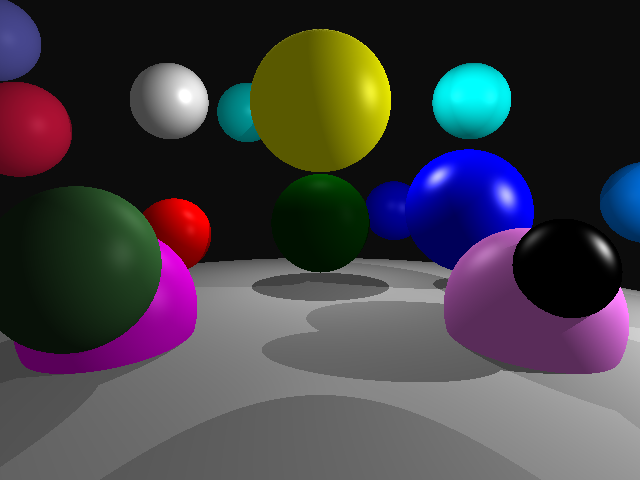

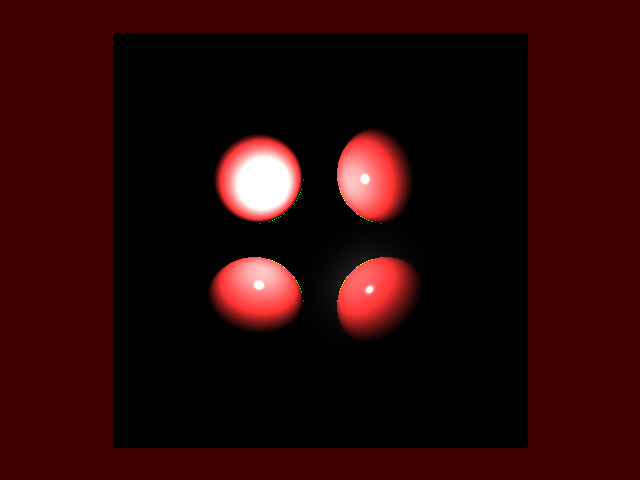

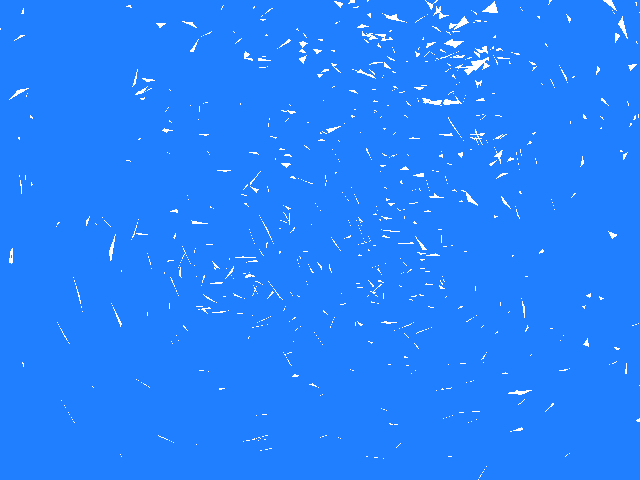

Here are some other images that aren't the full, expected output, since I was not able to get reflection working.

Executable HERE (Google Drive link) compiled on Mac. Code below.

//File parsing example

#include "image.h"
	#include "vector.h"
	#include "objects.h"
	#include <vector>
	#include <cstdio>
	#include <iostream>
	#include <fstream>
	#include <string>
	#include <cmath>
	#include <cstddef>
	#include <sys/time.h>

#define DEBUG

#define STB_IMAGE_IMPLEMENTATION //only place once in one .cpp file
	#include "stb_image.h"

#define STB_IMAGE_WRITE_IMPLEMENTATION //only place once in one .cpp files
	#include "stb_image_write.h"

using namespace std;

int main(int argc, char* argv[]){

// Defaults
		const char* c = "raytraced.bmp"; // char pointer for image name. default is raytraced.bmp
		int w = 640; 					// default width
		int h = 480; 					// default height
		int rgb[] = {0, 0, 0};			// default backround RGB values
		Sphere* sp = NULL; //= new Sphere();
		int maxV;
		vector<Vec3> vertices;
		Triangle* tr = NULL;
		string line;
		material* mat = new material(); // default material
		// TODO: multiple materials
		int md = 5; 					// default max depth

		// Camera
		// Camera default values
			float px = 0.0;
			float py = 0.0;
			float pz = 0.0;
			float dx = 0.0;
			float dy = 0.0;
			float dz = 1.0;
			float ux = 0.0;
			float uy = 1.0;
			float uz = 0.0;
			float ha = 45.0;
		Camera* cam = NULL;

// Lighting
		// Directional light
			float dl_r, dl_g, dl_b, dl_x, dl_y, dl_z;
			vector<Light*> dl_list;
		// Point light
			float pl_r, pl_g, pl_b, pl_x, pl_y, pl_z;
			vector<Light*> pl_list;
		// Spot light
			float sl_r, sl_g, sl_b, sl_px, sl_py, sl_pz, sl_dx, sl_dy, sl_dz, sl_a1, sl_a2;
			vector<Light*> sl_list;
		// Ambient light
			float al_r = 0, al_g = 0, al_b = 0;

		cout << argv[1] << endl;

// open the file containing the scene description
		ifstream input(argv[1]);

// check for errors in opening the file
		if(input.fail()){
		cout << "Can't open file '" << argv[1] << "'" << endl;
		return 0;
		}

// determine the file size (this is optional -- feel free to delete the 6 lines below)
		streampos begin,end;
		begin = input.tellg();
		input.seekg(0, ios::end);
		end = input.tellg();
		cout << "File '" << argv[1] << "' is: " << (end-begin) << " bytes long.\n\n";
		input.seekg(0, ios::beg);

//Loop through reading each line
		string command;
		while(input >> command)
		{ //Read first word in the line (i.e., the command type)
			if (command[0] == '#')
			{
				getline(input, line); //skip rest of line
				printf("\tSkipping comment: %s%s\n", command.c_str(), line.c_str());
				//cout << "Skipping comment: " << command  << line <<  endl;
				continue;
			}
			if (command == "sphere")
			{
			//If the command is a sphere command
				float x,y,z,r;
				input >> x >> y >> z >> r;
				printf("Sphere as position (%f,%f,%f) with radius %f\n",x,y,z,r);
				if(sp == NULL)
					sp = new Sphere(x, y, z, r, mat);
				else
					sp->add(x, y, z, r, mat);
			}
			else if (command == "background")
			{
			//If the command is a background command
				float r,g,b;
				input >> r >> g >> b;
				printf("Background color of (%f,%f,%f)\n",r,g,b);
				rgb[0] = r * 255;
				rgb[1] = g * 255;
				rgb[2] = b * 255;
			}
			else if (command == "max_vertices")
			{
			//If the command is a max_vertices command
				int maxV_i;
				input >> maxV_i;
				printf("Max vertices: %d\n",maxV_i);
				maxV = maxV_i;
			}
			else if (command == "vertex")
			{
			//If the command is a max_vertices command
				if (maxV <= vertices.size())
				{
					printf("Cannot add another vertex! At max capacity :(\n");
				}
				else
				{
					float x,y,z;
					input >> x >> y >> z;
					printf("Vertex %lu (%f, %f, %f)\n", vertices.size(), x, y, z);
					Vec3 vertex(x,y,z);
					vertices.push_back(vertex);
				}
			}
			else if (command == "triangle")
			{
				int v1, v2, v3;
				input >> v1 >> v2 >> v3;
				if ( (v1<=vertices.size()) && (v2<=vertices.size()) && (v3<=vertices.size()) ) // check if these are valid vertices
				{

// calculate a normal for the triangle, since we aren't given one
					// we also don't know if the vertices are CW or CCW
					// so take the cross product of two random edges

// edges

/*      *    C
						   /  \
					   A  *____*   B
					*/

Vec3 a = vertices.at(v1);
					Vec3 b = vertices.at(v2);
					Vec3 c = vertices.at(v3);

Vec3 ca = c-a; // from point a to point c (to point c from point a)   C  <===== A
					Vec3 ba = b-a;

//Vec3 bc = b-c;
					//Vec3 ab = a-b;

Vec3* np = crossProd(ba, ca);
					float npmag = np->Magnitude();
					Vec3 n = (*np)/npmag;
					//Vec3* np = crossProd(ca, bc); // normal vector
					//Vec3 n = *np;

float temp = 0.0;

// check if the normal vector is pointing towards the camera or away from it
					// we want it pointing towards the camera, the dot product of n and the camera should be negative
					// (if the vector is pointing towards the camera, its dot product should be negative)
					//if it is positive, then switch the direction of z
					if (cam == NULL)
					{
						// use default camera
						Camera* tempcam = new Camera;
						temp = dotProd(tempcam->D, n); // look at the diretion of the camera
						delete tempcam;
					}
					else
					{
						temp = dotProd(cam->D, n); // look at the diretion of the camera
					}

if (temp > 0)
					{
						Vec3 flip;
						flip = Vec3(0.0,0.0,0.0);
						n = flip - n;
					}

if (tr == NULL)
					{
						tr = new Triangle(a, b, c, n, mat);
						printf("Triangle with vertices at index %d, %d, %d with normal (%f, %f, %f) added\n", v1, v2, v3, n.x, n.y, n.z);
					}
					else
					{
						tr->add(a, b, c, n, mat);
						printf("Triangle with vertices at index %d, %d, %d with normal (%f, %f, %f) added!\n", v1, v2, v3, n.x, n.y, n.z);
					}

delete np;
				}
				else
				{
					printf("Cannot add triangle! Not all vertices exist.\nLooking at vertices %d, %d, %d\nNumber of vertices: %lu\n", v1, v2, v3, vertices.size());
				}
			}
	//UNFINISHED treating normal triangles as triangles (this is incorrect)
	else if (command == "normal_triangle")
			{
				int v1, v2, v3, n1, n2, n3;
				input >> v1 >> v2 >> v3 >> n1 >> n2 >> n3;
				if ( (v1<=vertices.size()) && (v2<=vertices.size()) && (v3<=vertices.size()) ) // check if these are valid vertices
				{

// calculate a normal for the triangle, since we aren't given one
					// we also don't know if the vertices are CW or CCW
					// so take the cross product of two random edges

// edges

/*      *    C
						   /  \
					   A  *____*   B
					*/

Vec3 a = vertices.at(v1);
					Vec3 b = vertices.at(v2);
					Vec3 c = vertices.at(v3);

Vec3 ca = c-a; // from point a to point c (to point c from point a)   C  <===== A
					Vec3 ba = b-a;

//Vec3 bc = b-c;
					//Vec3 ab = a-b;

Vec3* np = crossProd(ba, ca);
					float npmag = np->Magnitude();
					Vec3 n = (*np)/npmag;
					//Vec3* np = crossProd(ca, bc); // normal vector
					//Vec3 n = *np;

float temp = 0.0;

if (temp > 0)
					{
						Vec3 flip;
						flip = Vec3(0.0,0.0,0.0);
						n = flip - n;
					}

delete np;
				}
				else
				{
					printf("Cannot add triangle! Not all vertices exist.\nLooking at vertices %d, %d, %d\nNumber of vertices: %lu\n", v1, v2, v3, vertices.size());
				}
			}
			else if (command == "camera")
			{
			//If the command is a camera command
				float pxi, pyi, pzi, dxi, dyi, dzi, uxi, uyi, uzi, hai;
				input >> pxi >> pyi >> pzi >> dxi >> dyi >> dzi >> uxi >> uyi >> uzi >> hai;
				printf("Camera at (%f,%f,%f) looking at (%f,%f,%f) with up (%f,%f,%f) and ha %f\n",pxi,pyi,pzi, dxi,dyi,dzi, uxi,uyi,uzi, hai);

cam = new Camera(pxi, pyi, pzi, dxi, dyi, dzi, uxi, uyi, uzi, hai);

px = pxi; py = pyi; pz = pzi;
				dx = dxi; dy = dyi; dz = dzi;
				ux = uxi; uy = uyi; uz = uzi;
				ha = hai;
			}
			else if (command == "film_resolution")
			{
				int wi, hi;
				input >> wi >> hi;
				printf("Image with width %d and height %d\n", wi, hi);
				w = wi;
				h = hi;
			}
			else if (command == "output_image")
			{
			//If the command is an output_image command
				string outFile;
				//c = outFile.c_str();
				input >> outFile;
				printf("Render to file named: %s\n", outFile.c_str());
				c = outFile.c_str();
			}
			else if (command == "material")
			{
			//If the command is a material command
				float ar, ag, ab, dr, dg, db, sr, sg, sb, ns, tr, tg, tb, ior;
				input >> ar >> ag >> ab >> dr >> dg >> db >> sr >> sg >> sb >> ns >> tr >> tg >> tb >> ior;
				delete mat;
				mat = new material(ar, ag, ab, dr, dg, db, sr, sg, sb, ns, tr, tg, tb, ior);
				printf("Material as (%f,%f,%f,%f,%f,%f,%f,%f,%f,%f,%f,%f,%f,%f)\n", ar, ag, ab, dr, dg, db, sr, sg, sb, ns, tr, tg, tb, ior);
			}
			else if (command == "directional_light")
			{
			//If the command is a directional light command
				input >> dl_r >> dl_g >> dl_b >> dl_x >> dl_y >> dl_z;
				printf("Directional light directed at (%f,%f,%f) with color of (%f,%f,%f)\n", dl_x, dl_y, dl_z, dl_r, dl_g, dl_b);
				Light* dl = new Light(dl_r, dl_g, dl_b, dl_x, dl_y, dl_z);
				dl_list.push_back(dl);
			}
			else if (command == "point_light")
			{
			//If the command is a point light command
				input >> pl_r >> pl_g >> pl_b >> pl_x >> pl_y >> pl_z;
				printf("Point light at position (%f,%f,%f) with color of (%f,%f,%f)\n", pl_x, pl_y, pl_z, pl_r, pl_g, pl_b);
				Light* pl = new Light(pl_r, pl_g, pl_b, pl_x, pl_y, pl_z);
				pl_list.push_back(pl);
			}
			else if (command == "spot_light")
			{
			//If the command is a spot light command
				input >> sl_r >> sl_g >> sl_b >> sl_px >> sl_py >> sl_pz >> sl_dx >> sl_dy >> sl_dz >> sl_a1 >> sl_a2;
				printf("Spot light at position (%f,%f,%f) with color of (%f,%f,%f), direction (%f,%f,%f), and angles %f, and %f\n", sl_px, sl_py, sl_pz, sl_r, sl_g, sl_b, sl_dx, sl_dy, sl_dz, sl_a1, sl_a2);
				Light* sl = new Light(sl_r, sl_g, sl_b, sl_px, sl_py, sl_pz);
				sl_list.push_back(sl);
			}
			else if (command == "ambient_light")
			{
			//If the command is an ambient light command
				input >> al_r >> al_g >> al_b;
				printf("Ambient light color of (%f,%f,%f)\n", al_r, al_g, al_b);
			}
			else if(command == "max_depth")
			{
				int mdi;
				input >> mdi;
				printf("Max depth is %d\n", mdi);
				md = mdi;
			}
			else
			{
				getline(input, line); //skip rest of line
				printf("\tWARNING. Do not know command: %s \n", command.c_str());
				//cout << "WARNING. Do not know command: " << command << endl;
			}
		}

char* name = (char*)c; // name of the image (convert const char* to char*)
		Image *img = new Image(w, h);
		img->Fill(rgb[0], rgb[1], rgb[2]);

if (cam == NULL)
			cam = new Camera;

Vec3 *V, pos;	// V is the directional vector of the current ray, pos is the current pixel position
		Vec3 D; 		// D is the direction vector from the camera augmented to fit the trigonometry for the calculation of V
		Vec3* d_u = cam->D.UnitVector();	// *_u denote unit vector
		Vec3* u_u = cam->U.UnitVector();
		Vec3* S = crossProd(*d_u, *u_u);	// vector in direction of positive width
		Vec3* s_u = S->UnitVector();
		float xpos, ypos;
		Ray* P0 = new Ray();

D = h / (2 * tanf(cam->ha * M_PI/180.0f)) * *d_u;

//printf("Unit d: %f,%f,%f\n", D.x, D.y, D.z);

for (int i = 0; i < w; i++)
		{
			printf("pixel %d of %d\n", i, w);
			for (int j = 0; j < h; j++)
			{
				// find V
				xpos = w/2.0 - i;
				ypos = h/2.0 - j;
				pos = cam->O + D + (ypos * *u_u) + (xpos * *s_u);
				V = (pos - cam->O).UnitVector();

// Use V to find hits
				P0->o = cam->O;
				P0->d = *V;
				intersect* surf = NULL;
				intersect* hit = NULL;
				//intersect* hit1 = NULL, *hit2 = NULL;
				Sphere* curS = sp;
				Triangle* curT = tr;
				if (sp != NULL)
				{
					hit = NULL;
					hit = curS->hit(P0);
				}

Pixel p = img->GetPixel(i, j);

while (hit != NULL) // HIT
				{
					//p.g = 255;
					p.a = 255;

//printf("HIT (%f,%f,%f)\n", hit->hit.x, hit->hit.y, hit->hit.z);
					if (surf == NULL)
					{
						surf = hit;
					}
					else
					{
						Vec3 measure1 = hit->hit - cam->O;
						Vec3 measure2 = surf->hit - cam->O;
						if(measure1.Magnitude() < measure2.Magnitude())
						{
							surf = hit;
						}
					}
					curS = hit->objS->next;
					if (curS == NULL)
					{
						break;
					}
					hit = curS->hit(P0);
				}

hit = NULL;

if (tr != NULL)
				{
					hit = NULL;
					hit = curT->hit(P0);
				}
				while(hit !=NULL)
				{
					if (surf == NULL)
					{
						surf = hit;
					}
					else
					{
						Vec3 measure1 = hit->hit - cam->O;
						Vec3 measure2 = surf->hit - cam->O;
						if(measure1.Magnitude() < measure2.Magnitude())
						{
							surf = hit;
						}
					}
					curT = hit->objT->next;
					if (curT == NULL)
					{
						break;
					}
					hit = curT->hit(P0);
				}

if (surf != NULL)
				{
					Vec3 vhit(surf->hit.x, surf->hit.y, surf->hit.z); // Position that you hit
					material* color;
					if (surf->objT == NULL)
					{
						curS = surf->objS;
						color = curS->mat;
					}
					else if (surf->objS == NULL)
					{
						curT = surf->objT;
						color = surf->objT->mat;
					}

// pixel values, if no lighting info, same as background
						float r = p.r;
						float g = p.g;
						float b = p.b;
					// ambient
						float ar = 0.0;
						float ag = 0.0;
						float ab = 0.0; // ambient
					// diffuse (Lambertian)
						float dr = 0.0;
						float dg = 0.0;
						float db = 0.0;
					// specular (Phong)
						float sr = 0.0;
						float sg = 0.0;
						float sb = 0.0;

// ambient light
					ar = color->ar*al_r;
					ag = color->ag*al_g;
					ab = color->ab*al_b;

///////////////////////////////
	// POINT LIGHTS              //
	///////////////////////////////
					//Labmertian and Phong
					//RIGHT NOW, assuming one point light
					//TODO: Multiple point lights!
					if (pl_list.begin() != pl_list.end())
					{
						vector<Light*>:: iterator i;
						for (i = pl_list.begin(); i != pl_list.end(); i++)
						{

// LAMBERTIAN
							Light* pl = (*i); // look at first point light

Vec3 n;
							//Vec3 n = vhit - now->O; // normal
							if(surf->objT == NULL)
							{
								n = vhit - curS->O;
							}
							else if (surf->objS == NULL)
							{
								n = vhit - curT->n; // NOT FINI
	//////////////////////////////// THIS ISN'T DONE ^ /////////////////////
							// need to do stuff with barycentric coordinates, etc
							}

Vec3* n_n = n.UnitVector(); // unit vector version of the normal vector

							Vec3 l = pl->position - vhit;
							Vec3* l_n = l.UnitVector();

/////////////
							// Shadows //
							/////////////

//struct timeval tp;
							//gettimeofday(&tp, NULL);
							//long int ms = tp.tv_sec * 1000 + tp.tv_usec / 1000;

Ray* light = new Ray();	// ray for shadow checking
							light->o = vhit + (0.00001 * *l_n);	// move the ray's origin very slightly towards the light source to avoid shadow acne
							light->d = *l_n;
							intersect* shadowS;
							intersect* shadowT;
							if (sp == NULL)
							{
								shadowS = NULL;
							}
							else
							{
								shadowS = sp->hit(light);
							}
							if (tr == NULL)
							{
								shadowT = NULL;
							}
							else
							{
								shadowT = NULL;
								//shadowT = tr->hit(light);
							}

delete light;
							if (shadowS != NULL || shadowT != NULL)
							{
								if (shadowS != NULL)
								{
									delete shadowS;
								}
								if (shadowT != NULL)
								{
									delete shadowT;
								}
								// cout << "Shadow" << endl;
								continue;
							}

float nl = dotProd(*n_n, *l_n); // dotProd(normal unit vector, light unit vector)
							if ( nl < 0)
							{
								nl = 0;
							}

float d2 = dotProd(l, l); // attenuation: distance from light squared
							//printf("d2: %f\n", d2);

dr += (color->dr)/d2 * (pl->r) * nl;
							dg += (color->dg)/d2 * (pl->g) * nl;
							db += (color->db)/d2 * (pl->b) * nl;

// PHONG
							// we will use the Vec3* l_n n_n from before (light and normal vectors)
							// Is = ks *( pow(dotProd(V,R),n) * Il)
							Vec3 r = (2 * dotProd(*n_n, *l_n)) * *n_n - *l_n;
							//float rmag = r.Magnitude();
							//printf("rmag: %f\n", rmag);

// -1.0 * *V becau se want FROM intersectino TO eye (not other way around)
							float n_dot_h = dotProd(-1.0 * *V, r);
							if (n_dot_h < 0)
							{
								n_dot_h = 0;
							}

sr += (color->sr)/d2 * pow( n_dot_h ,color->ns) * pl->r;
							sg += (color->sg)/d2 * pow( n_dot_h ,color->ns) * pl->g;
							sb += (color->sb)/d2 * pow( n_dot_h ,color->ns) * pl->b;
							delete n_n;
							delete l_n;
							//delete light;
						}
					}

////////////////////////////
	// DIRECTIONAL LIGHTS     //
	////////////////////////////
					if (dl_list.begin() != dl_list.end())
					{
						vector<Light*>:: iterator i;
						for (i = dl_list.begin(); i != dl_list.end(); i++)
						{
							// LAMBERTIAN
							Light* dl = (*i); // look at first point light

Vec3* n_n = n.UnitVector(); // unit vector version of the normal vector

							Vec3 l = dl->position;
							Vec3* l_n = l.UnitVector();

/////////////
							// Shadows //
							/////////////

//struct timeval tp;
							//gettimeofday(&tp, NULL);
							//long int ms = tp.tv_sec * 1000 + tp.tv_usec / 1000;

float nl = dotProd(*n_n, *l_n); // dotProd(normal unit vector, light unit vector)
							if ( nl < 0)
							{
								nl = 0;
							}

float d2 = 1;
							//float d2 = dotProd(l, l); // attenuation: distance from light squared
							//printf("d2: %f\n", d2);

dr += (color->dr)/d2 * (dl->r) * nl;
							dg += (color->dg)/d2 * (dl->g) * nl;
							db += (color->db)/d2 * (dl->b) * nl;

// -1.0 * *V becau se want FROM intersectino TO eye (not other way around)
							float n_dot_h = dotProd(-1.0 * *V, r);
							if (n_dot_h < 0)
							{
								n_dot_h = 0;
							}

sr += (color->sr)/d2 * pow( n_dot_h ,color->ns) * dl->r;
							sg += (color->sg)/d2 * pow( n_dot_h ,color->ns) * dl->g;
							sb += (color->sb)/d2 * pow( n_dot_h ,color->ns) * dl->b;
							delete n_n;
							delete l_n;
							//delete light;
						}
					}

//////////////
					//Reflection //
					//////////////
					float rr = 0, rg = 0, rb = 0;
					float tr = 0, tg = 0, tb = 0;

// Do ambient, diffuse, and specular all at once!
					r = ar + dr + sr;
					g = ag + dg + sg;
					b = ab + db + sb;

r = (r > 1) ? 1 : r;
					g = (g > 1) ? 1 : g;
					b = (b > 1) ? 1 : b;

					p.r = 255 * r;
					p.g = 255 * g;
					p.b = 255 * b;
					p.a = 255;
					delete surf;
				}
				else 			 // MISS
				{
					// Miss, don't change anything because it's the background
				}
				delete V;

// Image processing
				img->GetPixel(i, j) = p;
			}
		}

//Image* ret = img->Resample();
		/*
		Image *im2 = new Image(w, h);

for (int i = 0; i < w; i++)
		{
			for (int j = 0; j < h; j++)
			{
				float gaus[] = {0.058549832, 0.096532353, 0.058549832, 0.096532353, 0.159154943, 0.096532353, 0.058549832, 0.096532353, 0.058549832};
				float corner = 0.058549832;
				float side = 0.096532353;
				float center = 0.159154943;
				Pixel p;
				p.r = 0;
				p.g = 0;
				p.b = 0;
				p.a = 255;
				for (int k = -1; k <= 1; k++){
					for (int l = -1; l <= 1; l++){
						Pixel pix;
						if(i+k > 0 && i+k < w && j+l > 0 && j+1 < h)
						{
							pix = img->GetPixel(i + k, j + l);
						}
						else{
							pix = img->GetPixel(i, j);
						}
						p.r += pix.r * gaus[(k+1)*3 + l + 1];
						p.g += pix.g * gaus[(k+1)*3 + l + 1];
						p.b += pix.b* gaus[(k+1)*3 + l + 1];
					}
				}
				im2->GetPixel(i, j) = p;
			}
		}
		*/

//im2->Write(name);

delete d_u;
		delete u_u;
		delete S;
		delete s_u;

// TODO: go through pl_list and delete the vectors in the list and then delete the list

// cout << "name: " << name << endl;
		img->Write(name);
		//ret->Write(name);
		return 0;
	}
